Graaf Amplifier Repairs

Graaf GM20 Power Amplifier

Graaf GM20 Power Amplifier Graaf GM20 Power Amplifier Graaf GM20 Power Amplifier

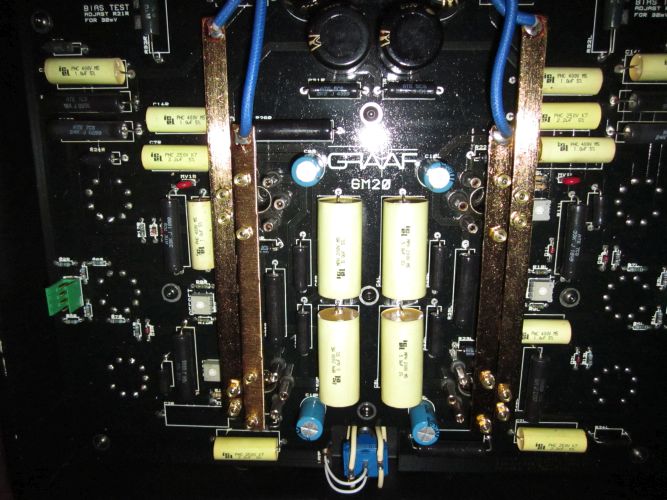

Right side channel was distorted and at low level, resistors in the bias were high resistance due to the heat. Bias was set to 22 mA and the o\p DC was zeroed.
