DBX Repairs

DBX 128

DBX 128

This was all over the place! There were millions of dry joints, I had to go over them all. The expand\compress section then worked fine but the noise reduction wouldn't work, had to replace 2 dual op amps, LF353.

DBX 128

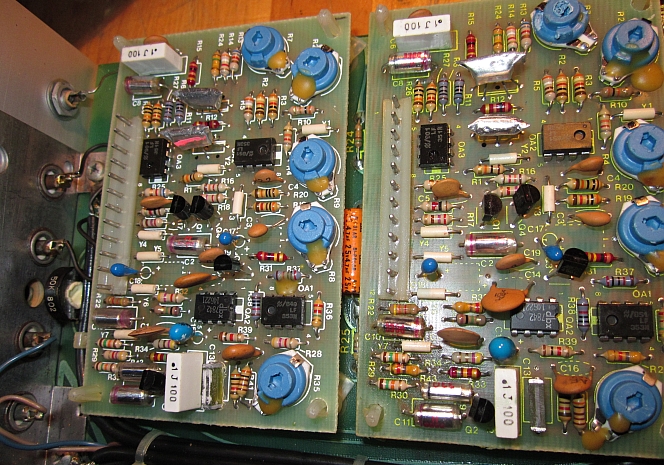

One channel was distorting badly, a transistor array (CA3046) on one of the vca boards was faulty.
