Studer Cassette Deck Repairs

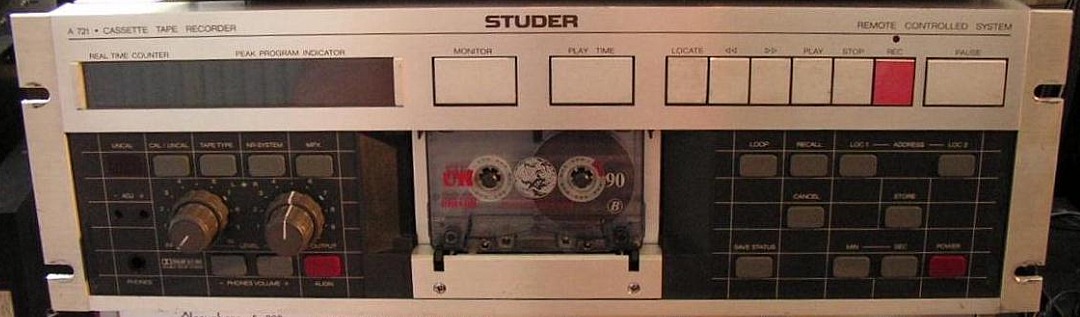

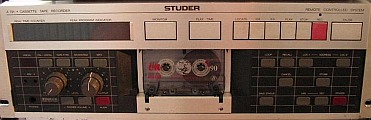

Studer A721

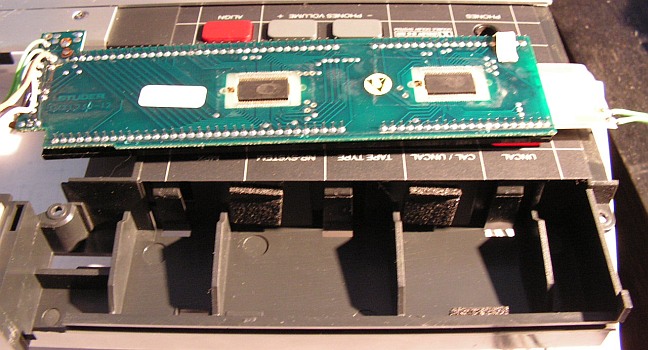

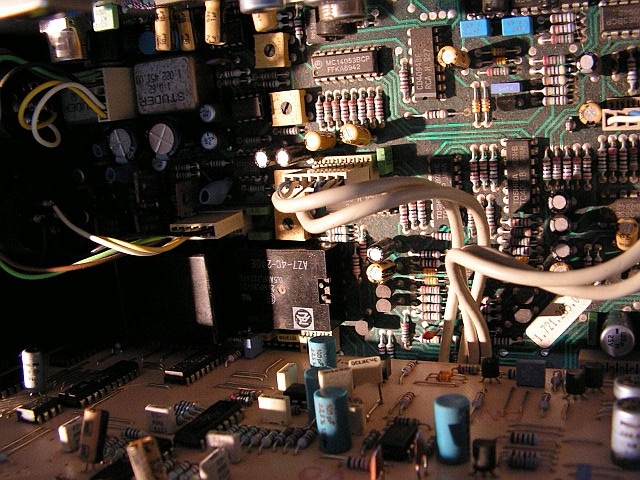

This wasn't working, one of the 470 µF 25V capacitors near the balanced in ⁄ out was shorting dragging the supply down, the display was dim and the foil behind it needed replacing, there was 130V going to it, picture shows the clips holding it in the casing, a quote for a price for one from Revox is £ 170–ouch– RS\Farnell do panels of different sizes, the company that distributes the panels can supply the correct size for a fraction of this, the size is approx 6in by 1.25in.

Studer A721 Studer A721 Studer A721
